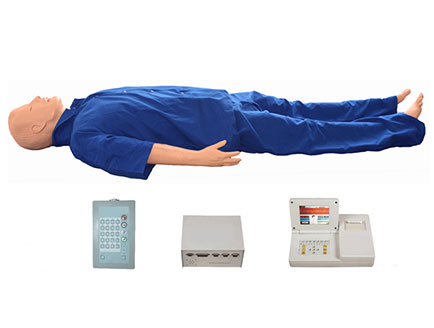

ZMJY/ALS100 Adult Life Support Emergency Simulation System

System functions:

● ECG monitoring and defibrillation pacing training functions.

● Comparison of normal and dilated pupils on both sides: Simulate the pupil status, normal, dilated, and the simulated person will change synchronously.

● Carotid artery pulsation: control the simulated arterial pulsation, the pulsation is weaker and the pulsation is stronger.

● CPR cardiopulmonary resuscitation:

1) Designed according to the 2015 international CPR guidelines, artificial respiration and chest compressions can be performed. Operation method: single or multi-person training and assessment, full Chinese language prompts. Standard airway opening, real-time data graphic display, voice prompts for correct and incorrect operations, statistical data print results, automatic scoring system.

2) Simulate the normal breathing sounds of the real human body.

● Airway management:

1) Standard oral and nasal airway intubation, support head tilt, jaw lift, tooth force alarm, and electronic digital visual display of correct operation and error.

2) The airway state can be manually controlled, such as: blocking the left lung, blocking the right lung, blocking both lungs at the same time, and opening both lungs.

● Defibrillation and pacing training: The human simulator can obtain the heart rhythm from the ECG simulator, and can connect to a real clinical monitor, and use clinical defibrillation or pacing equipment for defibrillation and pacing training. Corresponding physiological changes occur.

● ECG monitoring: can perform ECG monitoring function. Internal storage of 20 ECGs.

● ECG simulator: There are dozens of heart rhythms to choose from, and the user can set the direction of the simulated heart rhythm change by himself.

● Operation training for intramuscular injection of lateral thigh:

1) Can actually inject the drug. 2) The module can be taken out to squeeze out the injected drug.

3) The same site can withstand hundreds of punctures. 4) Modules are replaceable.

● Arm intravenous injection operation training:

1) The vein distribution is the same as the real human body. 2) There is an obvious sense of failure when the needle is inserted, and simulated blood can be added to produce blood return.

3) The skin and blood vessels can be replaced. 4) The same puncture site of venous blood vessels and skin can withstand hundreds of puncture leaks.

★ The ankle joint of the simulated human can be rotated left and right: it is basically the same size as the real human body, and can be used for foot care operations.

★ The manikin can exchange male and female external genitalia, and can conduct catheterization training: the manikin has a simulated bladder, which can be injected with simulated urine, and the simulated urine will flow out if the operation is successful.

● Real defibrillation and pacing: It can be used together with the real defibrillation and pacemaker prepared by yourself to perform real defibrillation and pacing.
