ZMDKF5S

Workbench: 680*600*830mm

Total volume: 680*600*1300mm

★Product structure: stainless steel injection molding structure, the overall shape of the K shape

★ The front side feet of the table are integrally formed with ABS, and the rear side feet are made of steel plate.

ABS injection molding material features: odorless, non-toxic, no formaldehyde release, tough, not easy to deform, acid resistance, alkali resistance, corrosion resistance, dustproof and waterproof, etc.

★Material: The front and side legs of the table legs and the cabinet are injection-molded with professional engineering ABS materials, and assembled with special connectors; the back plate and the rear part of the side legs are made of Baosteel 1.0 cold-rolled steel plates, stamped by special molds, and welded to form; Washing, phosphating, "EPOXY" powder spraying high temperature curing treatment. It has the characteristics of strong load-bearing performance, acid and alkali resistance and corrosion resistance.

★Cabinet body: The integrated design is adopted. The student drawer and cabinet door adopt humanized arc-shaped technology, and the corners that are easy to collide are rounded. The overall design of the product style is beautiful, reasonable and safe.

★Front side feet: ABS integral molding, K-shaped, side feet width 80mm, height 730mm. Drawer: ABS one-piece molding

★The drawer panel adopts up and down push-pull closure, which is very convenient to operate; the student power base is embedded in the middle of the drawer;

◆Ergonomic design, students can sit and stand smoothly and comfortably.

★Panel: It adopts 12.7mm solid core physical and chemical board, and the peripheral molding thickness is 25.4mm.

★Connecting parts: ABS special connecting assembly; Table legs: ABS injection molding special table mat. Provide the new test bench product test report issued by the quality inspection department.

Test system function:

1. The system has the functions of acupuncture collection, storage, intelligent analysis, learning, and examination. The acupuncture manipulation parameter measurement system can collect acupuncture manipulations in real time, and display them on a coordinate axis in the form of waveform graphs, reflecting the actual values of various parameters of acupuncture manipulation waveforms in real time.

2. The system can intelligently analyze various parameters of acupuncture manipulations collected by the system, including: the magnitude of lifting, twisting, and swinging forces in acupuncture manipulations; the speed and displacement of lifting and insertion; the angular velocity of twisting; the angle of swing; and The layered operation of the duplex technique can be displayed.

3. The system can store a large number of acupuncture manipulation waveforms and related data to form an expert acupuncture manipulation database or a teacher's acupuncture manipulation database, which can be viewed at any time, and can be compared in real time by the learner's operation, and the learner can adjust their own in time. In order to achieve the best learning effect, we strive to achieve the basic consistency of the methods of acupuncture experts (teachers).

4. The system is also equipped with examination and scoring functions. Since there is currently no unified standard for the specific values of various parameters of acupuncture manipulations, teachers can input their own or other expert manipulations into the system before class as a learning method. example, the scoring system scores according to this standard.

【System Configuration】

 LCD Monitor: 19 inches, Motherboard: B75MA-P45, CPU Model: Core I3 Processor, CPU Frequency: 2.9GHz, Memory Capacity: 2GB DDR3 1333MHz, Hard Disk Capacity: 500GB Graphics Chip: Intel GMA HD 3000, Operating System: Windows XP 64bit, graphics card type: core graphics card, audio system: integrated, wired network card: 1000Mbps Ethernet card.

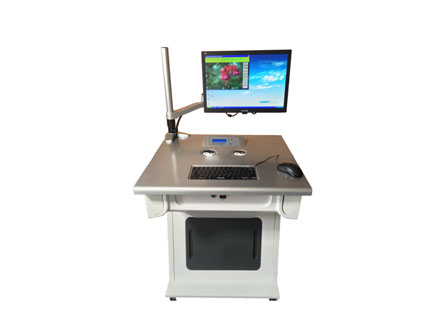

【product composition】

1 system trolley

1 workbench

19 inch monitor 1

1 power cord
